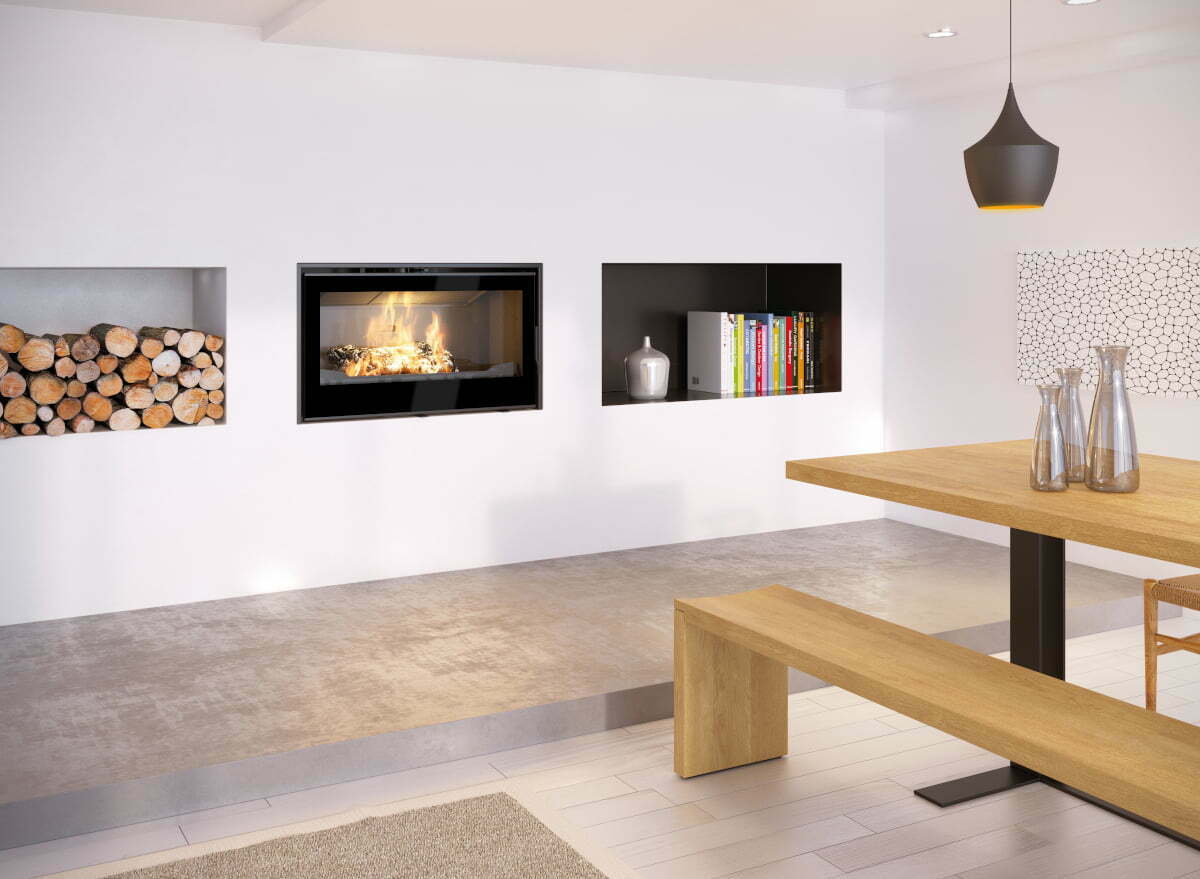

Axis I1000 IB Single Sided Inbuilt Fireplace

Description

Axis I1000 IB Single Sided Inbuilt Fireplace
Product Code: AX-I1000-SS ZC KIT

* This item is eligible for reduced Flat Rate postage to Melbourne, Canberra & Sydney.
* All rates are automatically calculated at the checkout. If at all in doubt about the postage cost, please use the request a quote feature at checkout or contact us by phone  or email.

Brand Information:

Based in the Rhône-Alpes region of France, Axis fireplaces specialise in the manufacturing of designer wood fireplaces.

Over the last 18 years Axis fireplaces’ have been dedicated to designing and manufacturing luxury steel fireboxes using state of the art technology to laser cut all units which are then tightly mechanically welded to the frame. As a result of this craftsmanship, no warping of the firebox will occur.

Axis Fireplaces are ranked number 1 in France for their high quality steel, energy efficient technology and contemporary fireplace designs.

Description:

Features:

• Handmade in the Rhone Alpes region of France
• 1000mm firebox width and 833mm wide glass viewing area
• Includes a Zero Clearance Box – All in-builts purchased with a Zero Clearance Box must be installed into a masonry or non-combustible enclosure complete with convection vents (minimum 600cm2 bottom & top), and insulated cavity lid.
• DAFS (Double Air Flow System)
• Manually assembled interlocking heavy duty 30mm fire bricks
• Sandstone colour designer fire bricks
• Phenomenal fire-brick heat retention and heat radiation
• Clean minimalistic design
• Equipped with Safety Damper
• Optional Outside Air-Kit
• Includes grate and ash pan
• Trim Kit Included
• 5 year firebox AND 10 year firebrick warranty

What is DAFS (Double Air Flow Systems)?

Triple Burn System

1. Powerful radiant heat – from the glass
2. Outstanding heating accumulation – from heat retention in the firebricks
3. Incomparable convection – natural flow of air through the fire box.

Selected Axis wood fireplaces are equipped with DAFS (Double Air Flow System) technology with the aim to inject oxygen at a determined level inside of the combustion chamber. The supply of new oxygen will burn the gases and smoke that has not yet been burnt and prevent them from being released into the flue system.

Advantages

• Less CO2 emissions
• Longer fire term
• Cleaner glass and bricks
• Total combustion of the fire wood

High Heat Refractory Bricks

All Axis fireplaces are made up of manually assembled interlocking refractory bricks. This method avoids dilatation by encouraging uniform and extended heat accumulation. During a fire in an Axis wood fireplace, the bricks (which are baked at 1350°C during manufacturing) will be heated to a temperature of 600°C. When the fire has dissipated the heat retained inside the bricks will generally take about 10 hours to cool down. This allows Axis fireplaces to have a large, long lasting heating capacity well after the fire has ceased.

What are the Outside Air Intakes?

All AXIS I1000 fireplaces have the option to be equipped with an outside air kit which is directly connected to the outside of your home. The firebox can then operate without using air from inside the room, with both primary and secondary air combustion stages being drawn directly from the fresh air outside.

Benefits:
Better efficiency, recommended for 6 star rated homes or homes that are tightly sealed, no oxygen drawn from inside your home.

How It Works:
The primary air will be taken from the facade of the firebox , through an air slide positioned in the ashtray.
The secondary combustion air (for the operation of the double combustion) will be taken directly from outside through an external wall or under the floor if possible.

Specifications:

• Material: Solid steel firebox with fire bricks
• Heating Capacity (m2): 140-270m2*
• Average Emissions: 1.2g/kg
• Average Efficiency: 66%
• kW Output: 9.5KW
• Glass Door: Secure swing door opening system
• Facade: Clean frameless design (Trim Included)
• Minimum Flue Required: 4.5m
• Flue Dimensions: 200mm, 250mm, 300mm
• Hearth Dimensions: 1220mm Depth: 700mm Thickness: 25mm
• Outside Air Kits: Recommended for well insulated homes – Custom air kit required for this model (no direct connection)*
• Warranty: 5 year firebox AND 10 year firebrick warranty
• Weight: 180kgs
• Overall Zero Clearance Box Dimensions: 1100mm (W) x 483mm (D) x 720mm (H)

Downloads:

• Axis I1000 Brochure – Click here
• Axis Installation Manual – Click here

If you are interested in this If you are interested in this Axis I1000 IB Single Sided Fireplace, please see other Insert Wood Fireplaces in our range:
Insert Wood Fireplaces
